Product Introduction

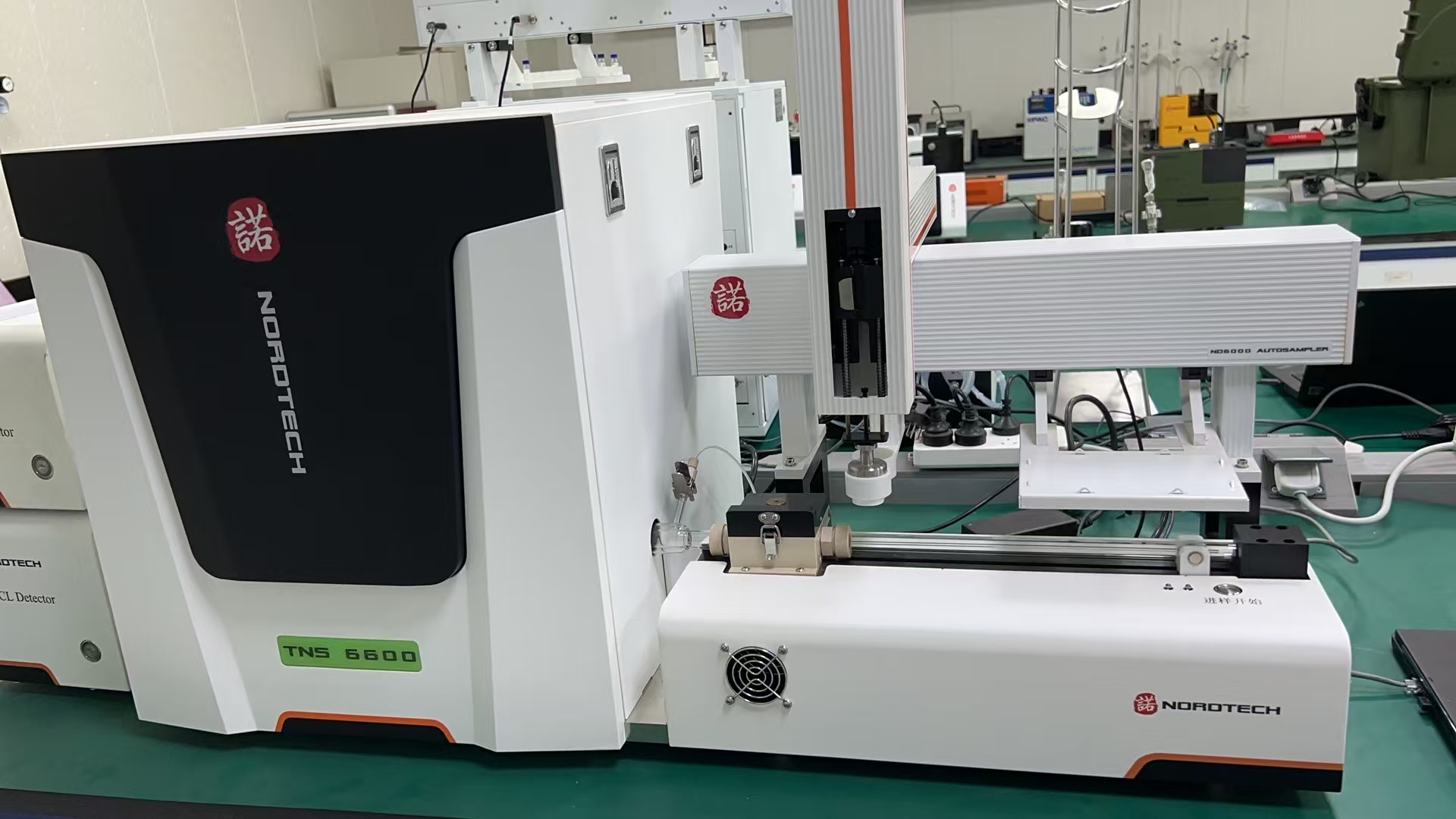

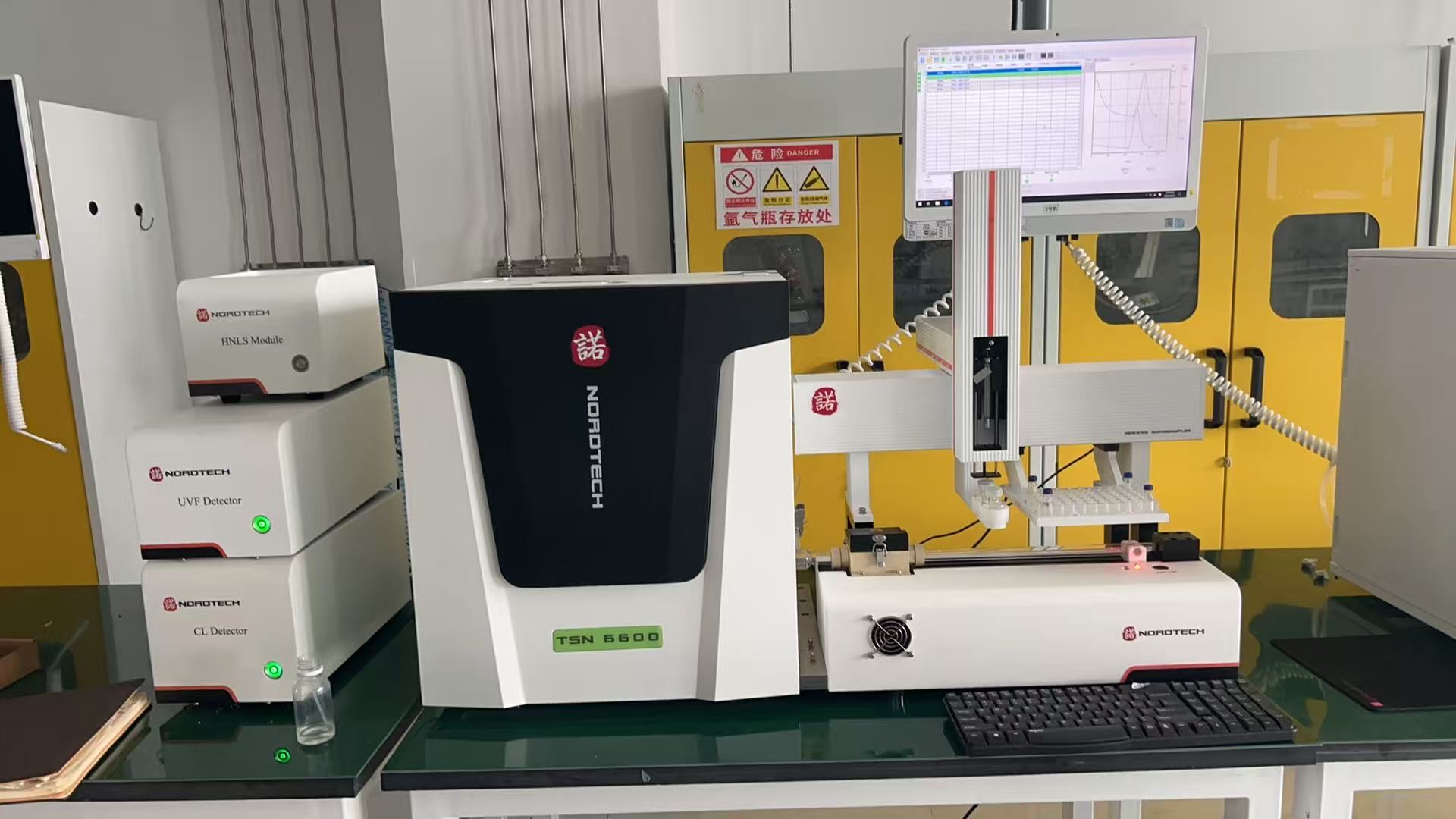

The TSN6600 is a sulfur‑nitrogen analyzer with a switchable horizontal/vertical furnace. Vertical mode enables faster analysis for liquids, gases, and LPG; horizontal boat‑injection mode is for solid or viscous samples such as lubricating oils, residual oils, and crude oil.
Key Technical Parameters
| Parameter | Specification |
|---|---|

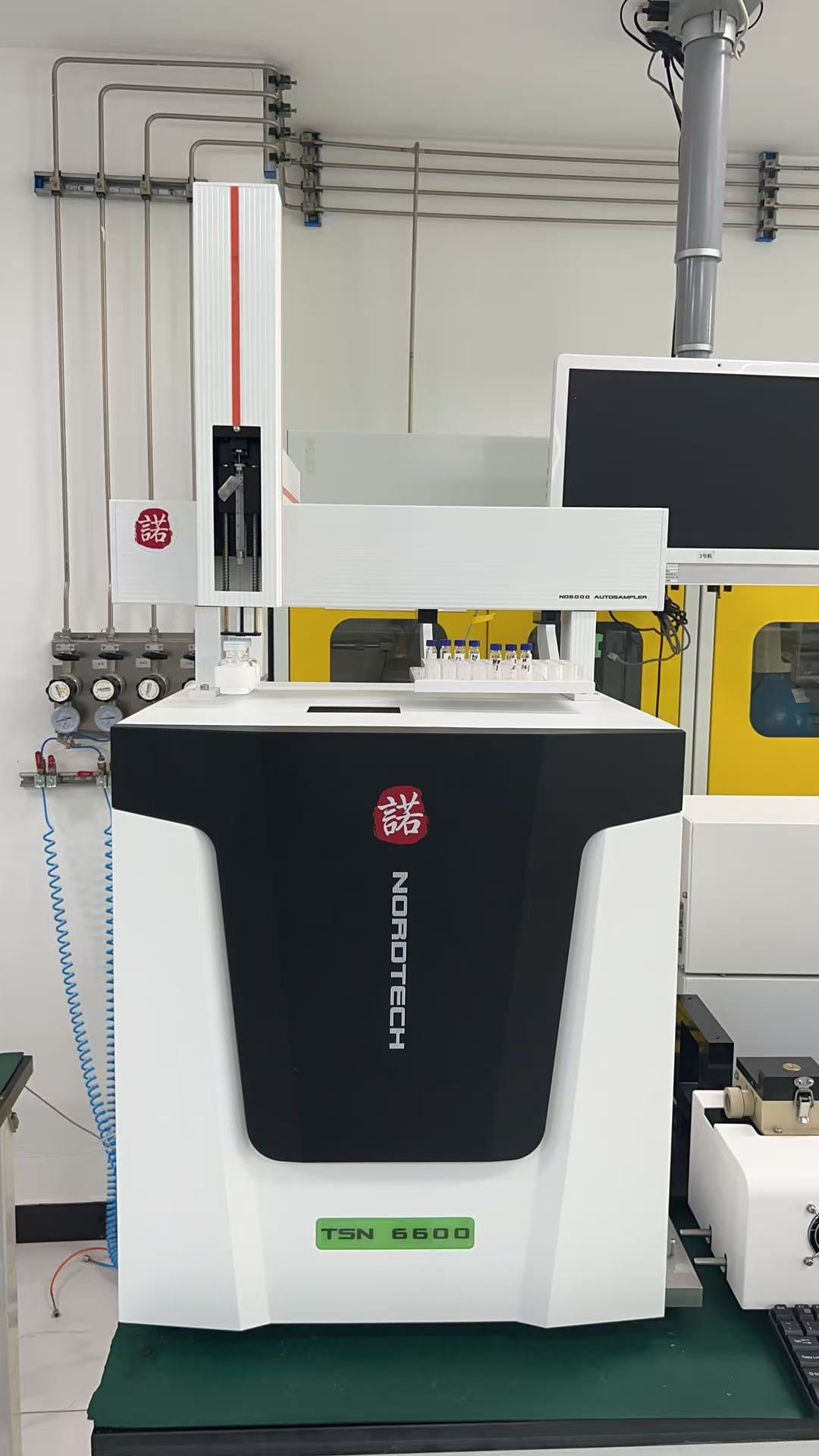

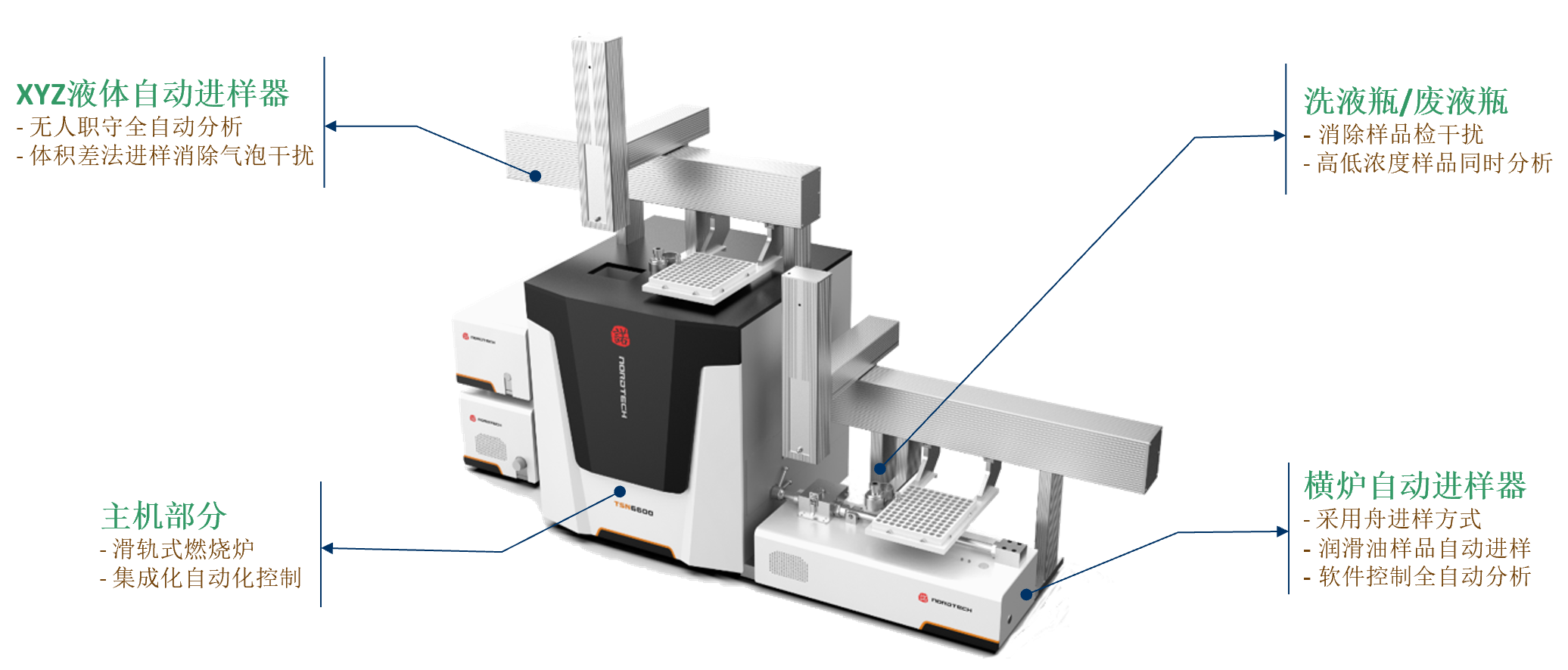

| Furnace configuration | Switchable vertical/horizontal; vertical for light hydrocarbons & gases, horizontal for viscous/solid samples |

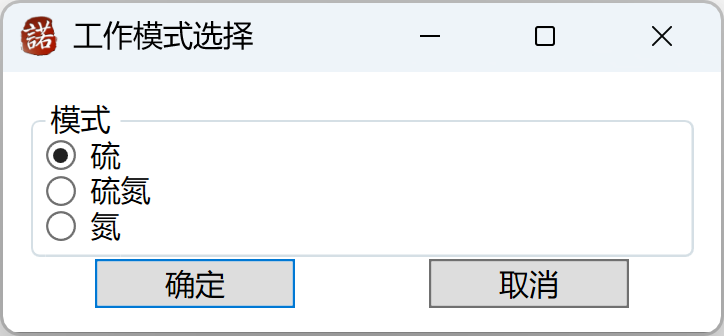

| Analysis modes | Sulfur, nitrogen, or sulfur‑nitrogen combined — automatically switchable |
| Measurement range | 0.1 – 10,000 mg/kg |

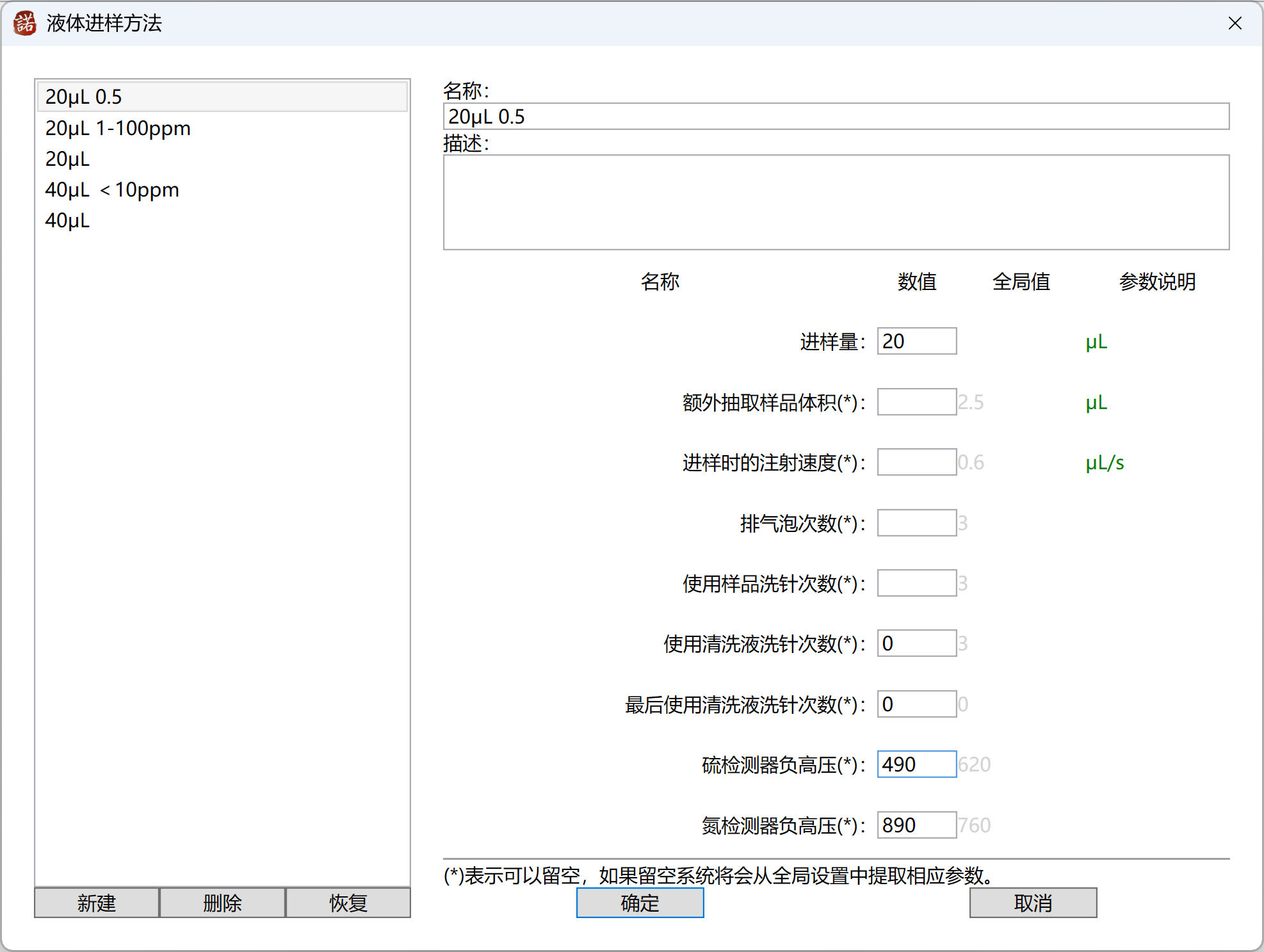

| Injection volume | Liquid: 0–100 μL (adjustable); Gas: 0–50 mL (adjustable); Solid: 0–100 mg (by weight) |
| Repeatability (Sulfur) | 1 mg/kg: RSD ≤ 6%; 10 mg/kg: RSD ≤ 3% |
| Temperature control | Ambient to 1300°C; accuracy ±1°C; Furnace: 1075°C ± 25°C |
| Oxygen flow | 450 – 500 mL/min |
| Calibration curve | Correlation coefficient ≥ 0.999 (0.50–10.0 mg/kg); Single‑point check at 5.0 mg/kg: deviation ≤ ±0.1 mg/kg |
| Liquid autosampler | XYZ fully automatic, 60‑position standard (customizable), auto‑cleaning, auto‑bubble removal, auto‑curve generation |
| Gas/LPG autosampler | 2‑in‑1 fully automatic |

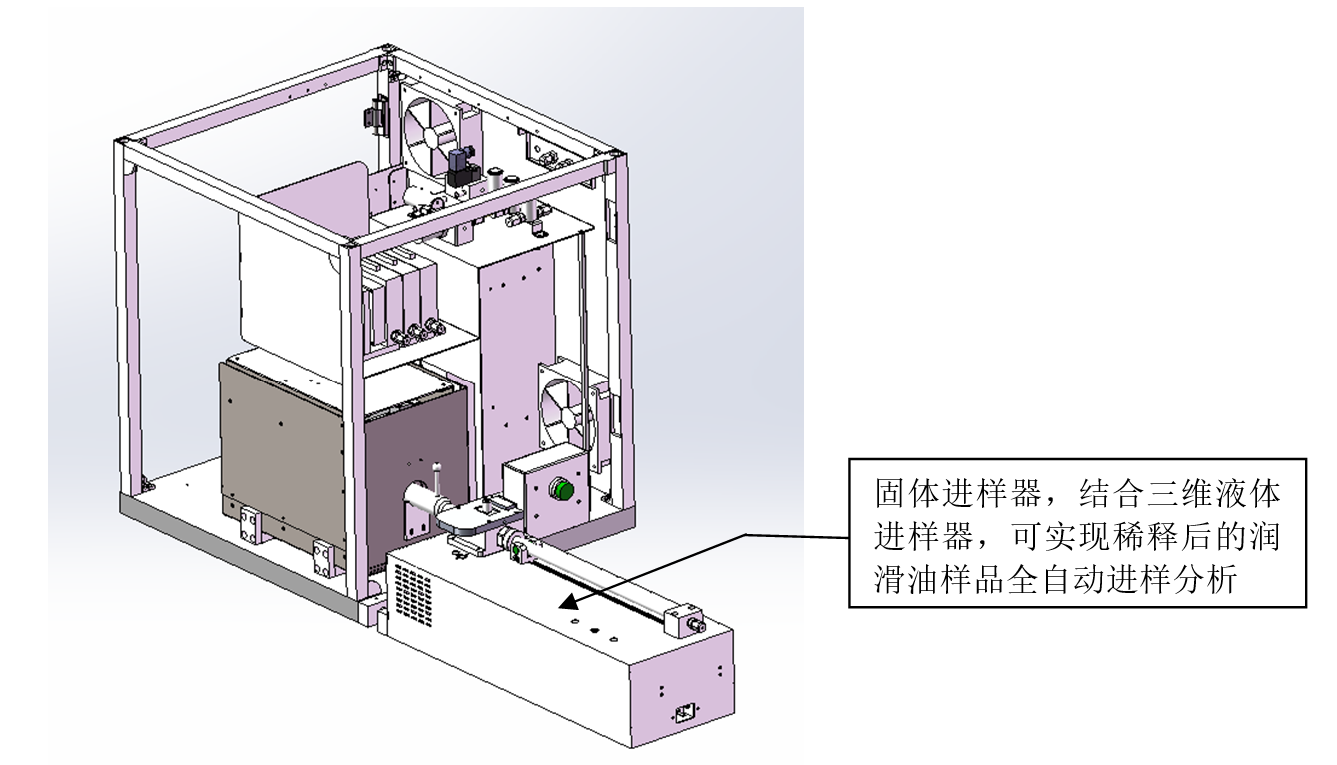

| Boat sampler | Fully automated batch analysis, unattended operation |
| Vertical furnace tube | 3‑layer reciprocating high‑temperature tube, prevents carbon buildup |
| Horizontal furnace tube | 2‑layer tube, software‑controlled depth, staged combustion |
| UV fluorescence detector | Pulsed xenon flash lamp for low‑level sensitivity |
| Chemiluminescence detector | Dual‑Peltier design; auto O₃ generator shutdown after 1 hour idle for extended life |
| Safety protection | Real‑time monitoring; automatic cool‑down on flow/pressure/temperature anomalies |
| Cooling technology | Delayed air‑cooling |
| Calibration | Segmented standard curve (e.g., 0.2–100 ppm in multiple segments) for broader range & low‑level accuracy |
